New · 2023

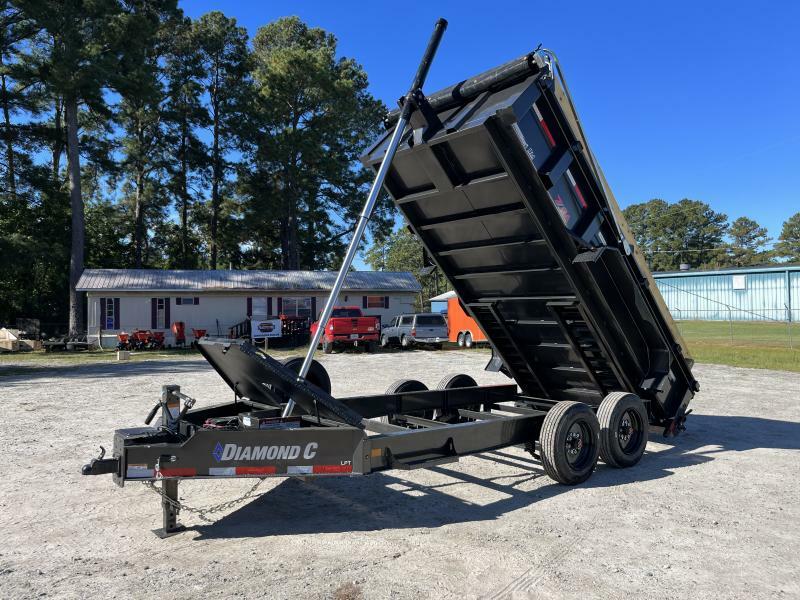

Diamond C LPT208 14ft Dump Trailer

18,000 lb GVWR · Bumper pull · Serial 46UFU1423R1280544

$2,500

Bed length: 14 ft
Bed width: 6.83 ft (7 ft)
GVWR: 18,000 lb
Empty weight: 5,560 lb

Details

Condition	New
Year	2023
Make	Diamond C Trailers
Model	LPT (LPT208)
Category	Dump trailer
Length	14 ft
Width	7 ft (6.83 ft)
GVWR	18,000 lb
Weight	5,560 lb
Axles	Two
Hitch / pull type	Bumper
Serial number	46UFU1423R1280544

Why this trailer

Diamond C's LPT line is built low, so it loads easily by hand or with a skid steer. It has a three-stage telescopic cylinder, a 3-way gate with hold-back system, and an engineered I-beam frame.

This one has the upgrades that matter on a job site: 7 ga (3/16") floor and sides, 17.5" 18-ply steel wheels with a matching spare, oil bath axles, and a Bluetooth wireless controller for the hoist.

What's on this trailer

Solarpulse charging system, 7 watt
Bluetooth wireless controller
Power up, gravity down hydraulic system (LPT)
Group 27 battery
All-LED lights
20' heavy duty black mesh tarp, installed
HD 78" rear slide-in ramps (3x2 rectangular tube)
Board brackets with boards and raised front
4 standard 5/8" D-ring tie-downs
Metallic gray paint

Frame, axles and tires

Frame size L14 x 81, engineered I-beam with 16" center crossmembers
2 x 8K electric drop axles, oil bath
6-leaf slipper spring suspension
ST215/75R17.5 single, 18 ply, black steel wheels
Matching spare, mounted on the passenger (curb) side
Body: 24" tall sides, 7 ga (3/16") floor and sides
3-way dump gate
Coupler: 2-5/16", 21K Demco EZ-Latch, flat mount
Tongue: engineered, with HD V-tongue lid box
Jack: 12K drop-leg
Fenders: 14 ga teardrop diamond plate, weld-on
One 24" side step, driver side
